BS60

BS60

BS60 can be used to create raised floors at varying heights from 1¼" (32mm) up to 10" (250mm) on flat or uneven surfaces.

Our products are made from 100% eco-friendly raw materials.

Withstand extreme weather conditions within temperature ranging from -40°F (-40°C) to 176°F (80°C)

It is recommended to use a fifth support at the center of the tile to ensure to distribute the load equally.

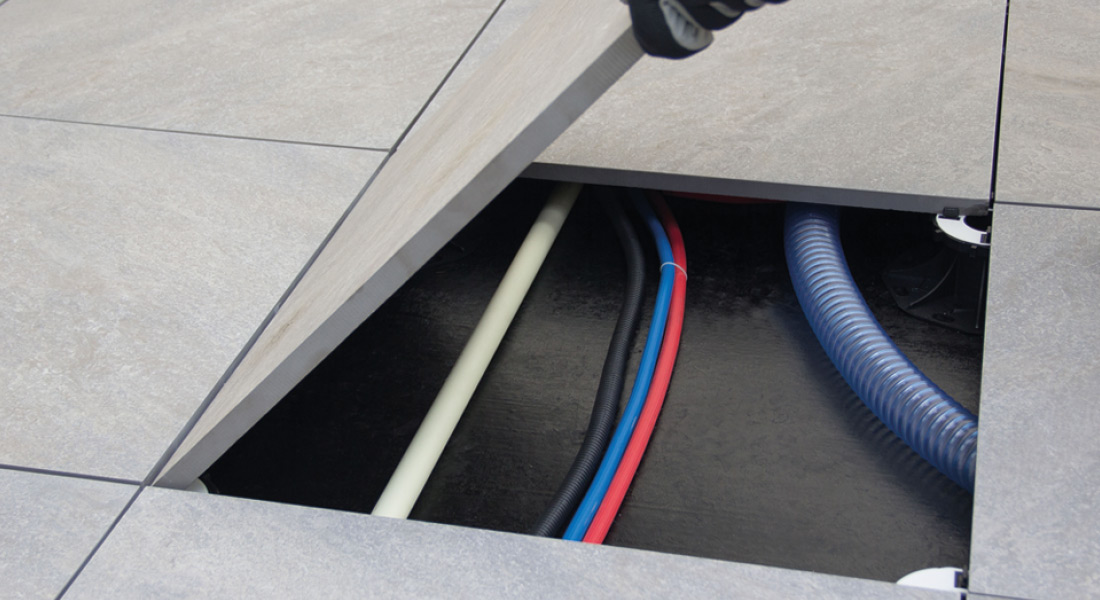

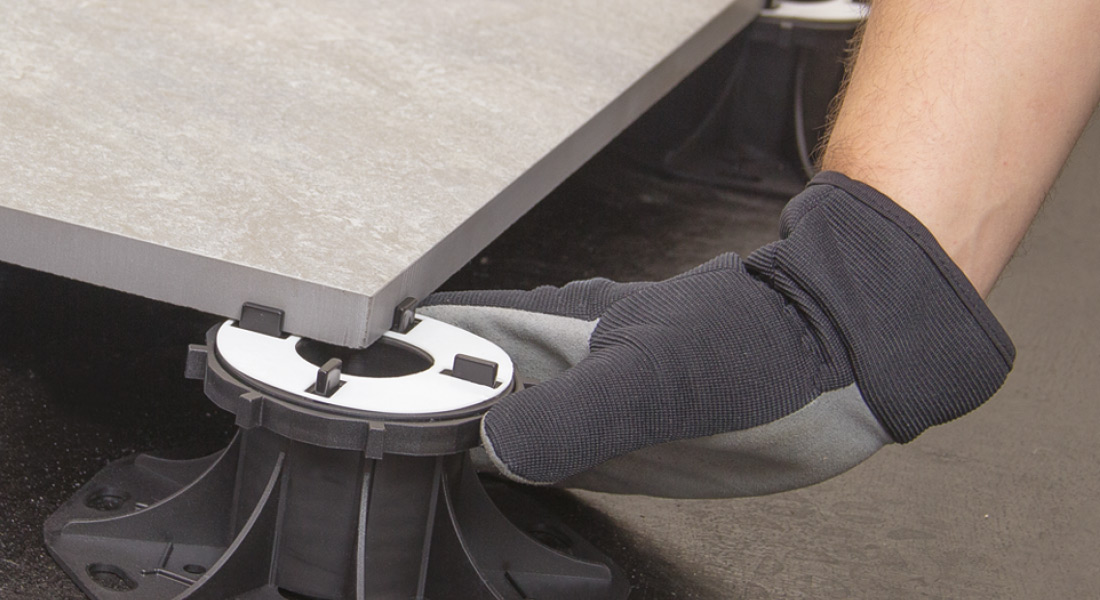

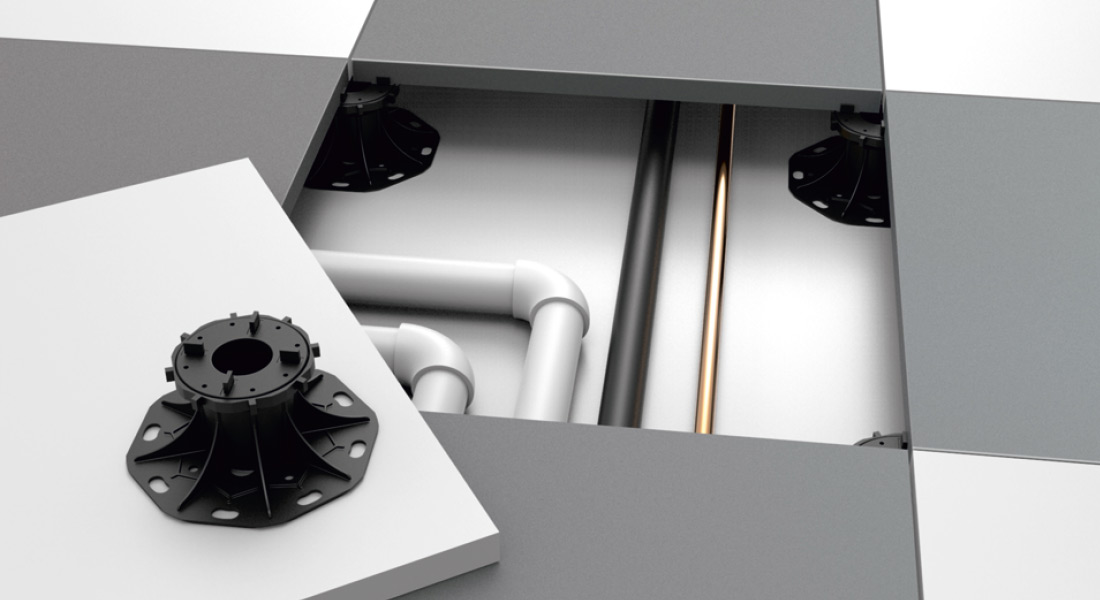

Sample Application
BS60 BS60 BS60
Models
BS60-01 BS60-01 (32-38mm)
1¼”-1½”
BS60-02 BS60-02 (38-50mm)
1½”-2”
BS60-03 BS60-03 (50-75mm)
2”-3”
BS60-04 BS60-04 (73-110mm)
2⅞"-4(5/16)"
BS60-05 BS60-05 (102-130mm)
4"-5⅛"
BS60-06 BS60-06 (126-155mm)
5"-6⅛"
BS60-07 BS60-07 (147-184mm)
6"-7¼"
BS60-08 BS60-08 (175-205mm)
7”-8”
BS60-09 BS60-09 (200-225mm)
7⅞"-9"
BS60-10 BS60-10 (220-250mm)
8⅝"-9(13/16)"

Basic Series Basic series can be used to create raised floors at varying heights from
1¼" (32mm) up to 10" (250mm) on flat or sloped surfaces.

BS60
BS60

Used in tile applications to create raised floors with natural stone, ceramic and composite flooring materials.
BSW60
BSW60

Applied with wood or aluminum joists to install raised floors from wooden and composite deck flooring materials.
SL60
SL60

Used with self-levelling system in tile applications for raised floors. Allows auto slope correction on surfaces maximum up to 5% gradient.
SLW60
SLW60

Used in raised floor applications with self-levelling system through wood and aluminum joists. This will allow wooden and composite deck flooring materials to be installed easily. Auto slope correction on surfaces maximum up to 5% gradient.

Eco Series

ES70
ES70

The ES70 range of modules are used for flooring tile.
ESW70
ESW70

The range of ESW70 is a module used for floor joist systems with wooden and composite decking materials.

Maxi Series Maxi Series designed to create elevated floors at varying heights from
3" (75mm) up to 21 ¼" (540mm) on flat or uneven surfaces.

BS110
BS110

Used in tile applications to create raised floors with natural stone, ceramic and composite flooring materials.
BSW110
BSW110

Applied with wood or aluminum joists to install raised floors with wooden and composite deck flooring materials.
SL110
SL110

Used with self-levelling system in tile applications of raised floors. Allow auto slope correction on surfaces maximum up to 5% gradient.
SLW110
SLW110

Used in raised floor applications with self-levelling system through wood and aluminum joists. This allows wooden and composite deck flooring materials to be installed easily. Allows auto slope correction on surfaces maximum up to 5% gradient.

Others

SLC001
SLC001

SLC001 is a modular and compatible with both the Basic and Maxi Series. It is used to correct sloped surfaces up to 5% gradient. With 360° rotatable design it helps also to find the slope direction.
Adjustment Tool
Adjustment Tool

Initial adjustments can be made easily manually during installation, but after installing heavy flooring materials the adjustment process can not be made easily with hands. In that case, the adjustment tool provide ease of adjustment.
Paving Spacer
Paving Spacer

Paving spacer ensures a fast ground application on sand, gravel or grass-surfaced parks, gardens and squares.
SP10
SP10

Thanks to SP-10 Module it is possible to create raised floors ranging from 3/8” (10mm) up to 13/16” (30mm) high. It is possible to adjust the system easily.
